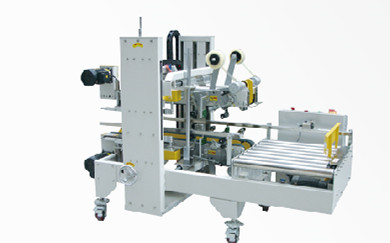

Automatic Edge Carton Sealing Machine
Machine Description and features:
(1) FX-JB01 carton sealer is easy to operate and maintain. Equipped with top bottom-side driving system, seal the carton edges, and sealing speed can reaches up to 6 cartons per minute.
(2) This machine is designed for simple, economical and durable, safe, low failure rate based.
(3)According to carton width and height. Manual adjust the machine
(4)Carton into the 90degree forward body, push the box from the corner into the side sealing machine, automatic carton sealing both the upper and lower side corners
(5)Sealing beautiful, fast, labor-saving, high efficiency
(6)Equipped with blade guards to prevent accidental stabbed during the operation
Technical Specification
|
Model |
FX-JB01 |
|
Speed |
250-360 cartons/hour (up to carton size) |
|
Max.Carton Size |
L500*W500*H500mm |
|
Min.Carton Size |
L280*W150*H150mm |
|
Power Supply |
220V/380V, Single Phrase-Three Phrase, 50-60HZ |
|
Air Pressure |
6kg/cm3 |
|
Tape Size |
Width 48mm-W60-75mm*L1000 Yards |
|
Machine Size |
L1900*W1130*H1530mm |
|
Machine Weight |
400kg |
This is standard specification and customized as order
